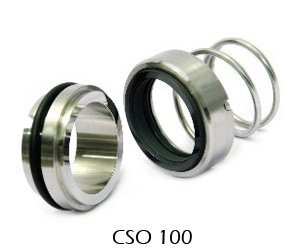

Quba’s Conical Spring Seal CSO 100 Series is a conical helical spring, unbalanced
seal with ‘O’ ring as secondary sealing member. Various seal face & elastomers can
be offered for different service applications. As the torque transmission is done by
the conical helical spring, these seals are dependent of direction of rotation. Direction
of rotation is seen from the drive end of the shaft. Clockwise rotating shaft requires
right handed spring and anti clockwise rotation is seen from the drive end of the shaft.
Clockwise rotating shaft requires right handed spring and anti clockwise rotating
shaft requires left handed spring. For easier fitting, the conical helical spring should
be pushed on the shaft with a twisting motion in the sense of spring unwinding.
This movement enlarges the diameter of the spring, enabling easy fitment.
Seal Face :Carbon / Lecrolloy,
Carbon / Ceramic, Carbon / Silicon Carbide
Silicon Carbide / Silicon Carbide,
Tungsten Carbide / Tungsten Carbide
Seal : Nitrile, Viton
Metal Parts: SS 316, SS 304
Secondary Seal : Elastomers, PTFE
Metal Parts: SS 316, SS 304
• Unbalanced
• Inside Mounted
• Single Conical Helical Spring
• Dependent of Direction of Rotation
• Torque Transmission by Conical Helical Spring
Pressure : 10 Bars(max)
Temperature : -20 to +1600° C
Velocity : Up to 20 m/sec
