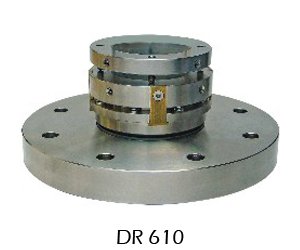

Quba’s Dry Running Seal DR 610 Series is factory assembled & dynamic
tested seal for steel, glasslined & SS mixers, agitators & vessels. It is a
multiple spring externally mounted, reverse balanced seal with ‘O’ ring
for secondary sealing.Various elastomers can be offered for different
service applications. These seals are basically used on top entry agitators
as dry running seals.When food products or pharmaceutical products are
agitated in agitator, mixing of any other liquid will contaminate the product & affect it’s quality, hence these dry running seals are used. These seals do
not require any external media for lubricating the faces and are therefore
called dry running seals
Seal Face :Carbon/ Silicon Carbide,
Carbon/ Tungsten Carbide,
Silicon Carbide/ Silicon Carbide
Secondary Seal : Elastomers, TCV
Metal Parts : SS316, SS304, Hastelloy-C,
Hastelloy-B, Monel, Alloy-20
• Single Acting
• Reverse Balanced
• Outside Mounted
• Independent of Direction
of Rotation
• Dry Running
Pressure : Vacuum to 8Bars(max)
Temperature : Ambient to +130° C
Velocity : Up to 320 rpm
