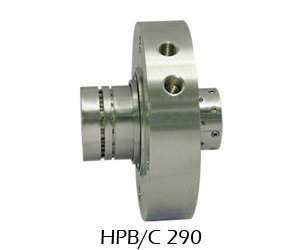

Quba’s High Pressure Balanced Cartridge Seal HPB/C 290 Series is a specially
designed cartridge seal for pumps handling oil, water and other fluids which
are being pumped at very high pressure. These seals are widely used in pipe
and boiler feed water pumps. Very sturdy design and drive arrangement
makes the seal suitable for very high pressure. This being a multiple
spring seal, it provides uniform face loading.
Seal Face : Carbon/ Silicon Carbide,
Carbon/ Tungsten Carbide,
Silicon Carbide/ Silicon Carbide,
Silicon Carbide/ Tungsten Carbide
Secondary Seal : Elastomers
Metal Parts: SS316, SS304, Hastelloy-C,
Titanium, Monel, Alloy-20,
API PLAN: 21, 23
• Balanced
• Inside Mounted
• Independent of Direction of Rotation
• Multiple Spring Design
• Sturdy Drive Mechanism
Pressure : 25 to 110 Bars(max)
Temperature : -40 to +180° C
Velocity : Up to 20 m/sec
