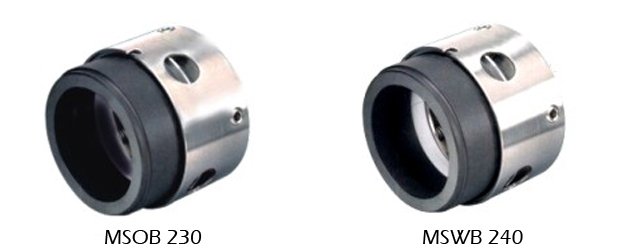

Multi Spring Balanced Seal MSOB 230 Series & MSWB 240 Series



Quba’s Multi Spring Balanced Seal MSOB 230 Series & MSWB 240 Series are multiple spring units developed for universal high pressure application. Their compact design makes them suitable for use in all types of Centrifugal pumps. Torque transmission from retainer shell to seal ring is done through drive lugs. All components are held together by a snap ring which makes installation and removal easy. As all parts are interchangeable, so Series MSOB 230 can be converted to Series MSWB 240 by changing only the seal ring & the elastomer and is ideal for stock rationalisation.


Applications:

Petrochemicals, Petroleum Refineries, General Chemicals & Light Hydrocarbons.


Seal Components:

Seal Face :Carbon / Lecrolloy, Carbon / Ceramic, Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide
Tungsten Carbide/Tungsten Carbide

Secondary Seal :

MSOB 230 : Elastomers (‘O’ Ring)
MSWB 240 : PTFE, GFT (Wedge)

Metal Parts: SS 316, SS 304, Hastelloy-C, Monel, Alloy-20


Seal Characteristics:
• Single Acting
• Balanced
• Inside Mounted
• Independent of Direction of Rotation

Operating Parameters:
Shaft Dia : 16 to 100 mm
Pressure : 35 Bars(max)
Temperature : -60 to +180° C
Velocity : Up to 20 m/sec
