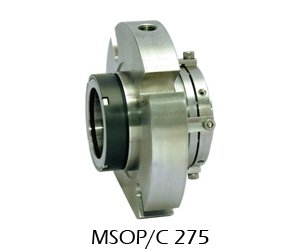

Quba’s Multi Spring Out Of Product Cartridge Seal MSOP/C 275 Series is a cartridge
construction multiple spring balanced seal specially developed for equipments
handling slurries, sludges, syrups and other fluids that polymerizes or solidify with
change in temperature. The springs are isolated from the fluid being sealed by
dynamic O-ring, which enhances the seal life. Seal requires tightening of studs,
nuts and detaching of location plates before starting the equipment. No dimensional
measurement at site is required. Seal can be installed by unskilled person.
Seal Face : Carbon/ Silicon Carbide,
Carbon/ Tungsten Carbide,
Silicon Carbide/ Silicon Carbide
Secondary Seal : Elastomers, TCV
Metal Parts:SS316, SS304, Hastelloy-C
Monel, Alloy-20
• Balanced
• Inside Mounted
• Independent of Direction of Rotation
• Multiple Spring Design
• Compact Cartridge Unit
Pressure : 18 Bars(max)
Temperature : -20 to +180° C
Velocity : Up to 20 m/sec
