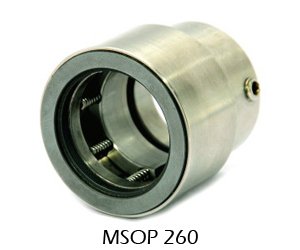

Quba’s Multi Spring Out Of Product Seal MSOP 260 Series is a multiple spring seal specially developed for slurry application. The springs are protected from the media by means of dynamic O ring. Although being a balanced seal it does not require step on the sleeve. The sleeve of the unbalanced seal can be used for this seal series without modification. Torque transmission to the seal ring is given by strong multiple drive pins/lugs.
Seal Face :Carbon / Ceramic, Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide,
Tungsten Carbide/Tungsten Carbide
Secondary Seal : Elastomers, TCV
Metal Parts: SS 316, SS 304, Hastelloy-C
• Balanced
• Springs are Outside the Media
• Independent of Direction of Rotation
• Stable Drive-pins/Lugs
• No Shaft Fretting
Pressure : 25 Bars(max)
Temperature : -20 to +140° C
Velocity : Up to 20 m/sec
