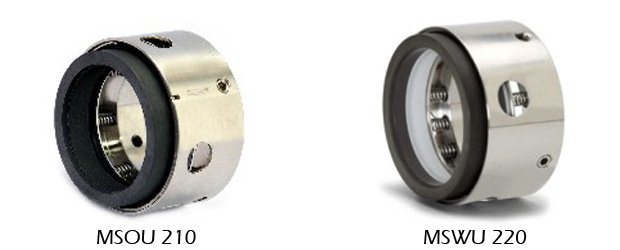

Quba’s Multi Spring Unbalanced Seal MSOU 210 Series & MSWU 220 Series are multiple spring units developed for universal application. Their compact design makes them suitable for use in all types of Centrifugal pumps. Torque transmission from retainer shell to seal ring is done through drive lugs. All components are held together by a snap ring which makes installation and removal easy. As all parts are interchangeable, so Series MSOU 210 can be converted to Series MSWU 220 by changing only the seal ring and the elastomer and is ideal for stock rationalisation.
Petrochemicals, Petroleum Refineries, General Chemicals & Light Hydrocarbons.
Seal Face Carbon / Lecrolloy,
Carbon / Ceramic,
Carbon / Silicon Carbide,
Silicon Carbide / Silicon Carbide,
Tungsten Carbide/Tungsten Carbide
Secondary Seal :
MSOU 210 : Elastomers (‘O’ Ring)
MSWU 220 : PTFE, GFT (Wedge)
Metal Parts: SS 316, SS 304, Hastelloy-C, Monel, Alloy-20
• Unbalanced
• Inside Mounted
• Independent of Direction of Rotation
Pressure : 10 Bars(max)
Temperature : -60 to +180° C
Velocity : Up to 20 m/sec
