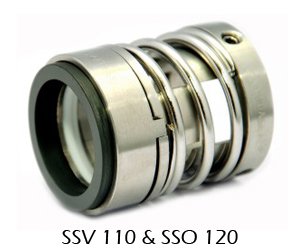

Quba’s Single Spring Seal SSV 110 Series (‘V’ Packing) & SS0 120 Series (‘O’ Ring)
are single helical coil spring, bi-directional seals developed for dirty media &
clogging applications.Torque transmission from drive collar to spring holder and
seal rings is done through sturdy drive lugs. ‘V’ packings are spring energised to
give perfect dynamic sealing.
As all the parts are interchangeable, so Series SSO 120 can be converted to
SSV 110 by changing only secondary seal and is ideal for stock rationalisation.
Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry & General Chemical Slurry.
Seal Face : Carbon / Lecrolloy, Carbon / Ceramic, Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide
Secondary Seal :
SSV 110 : PTFE, GFT (‘V’ Packing)
SSO 120 : Elastomers (‘O’ Ring)
Metal Parts: SS 316, SS 304
• Unbalanced
• Inside Mounted
• Single Conical Helical Coil Spring
• Independent of Direction of Rotation
• Universal Chemical Compatibility due to PTFE Elastomer
Pressure : Up to 14 Bars(max)
Temperature : -23 to +1800° C
Velocity : Up to 20 m/sec
