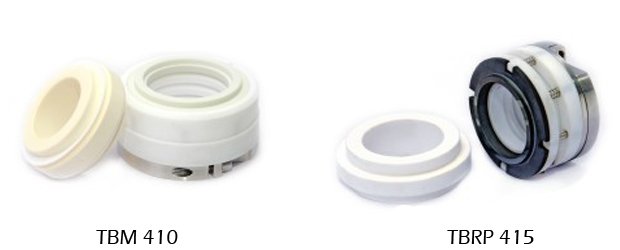

Teflon Bellow Seal TBM 410 Series & TBRP 415 Series




Quba’s Teflon Bellow Seal TBM 410 Series & TBRP 415 Series are designed for extreme corrosive chemical applications including concentrated acids, salts, strong oxidising and reducing agents & chemically active organic compounds. All components which come in contact with the liquid to be sealed are made of chemically inert material. Metallic components, clamping ring and springs are located outside the media. Springs provided with cover if required for acidic fumes application.



Applications:
Extremely Corrosive Chemical Applications.



Series TBM 410 : GFT & CFT faces of the seal is composite moulded with highly flexible PTFE bellows. Spring cover provided if required for acidic fumes application.


Series TBRP 415 : Designed with replaceable seal face.The seal is positively driven by internal lugs on bellow which impart smooth drive to the face. Easy replacement of faces.


Seal Components:

Seal Face :

TBM 410 : GFT / Ceramic & CFT / Ceramic
TBRP 415 : GFT / Ceramic & CFT / Ceramic
Silicon Carbide/ Ceramic
Carbon / Ceramic
Silicon Carbide/ Silicon Carbide
Secondary Seal : PTFE Bellow
Metal Parts : SS 316, SS 304, Hastelloy-C

Seal Characteristics:
• Single Acting
• Outside Mounted
• Independent of Direction of Rotation

Operating Parameters:
Shaft Dia : 18 to 100 mm
Pressure : 8 Bars(max)
Temperature : -45 to +160° C
Velocity : Up to 20 m/sec
