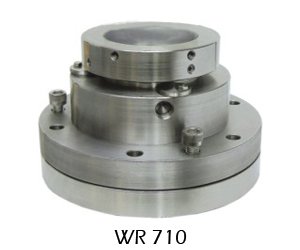

Wet Running Seal Without Bearing WR 710 Series






Quba’s Wet Running Seal Without Bearing WR 710 Series is factory assembled & dynamic tested seal for steel, glass lined & SS mixers, agitators & vessels.These are used with non pressurised barrier fluid preferably clean soft water because of its good heat transfer qualities. Fluids like oil, hydrocarbon, solvents etc. Can also be used as buffer fluid by considering the corrosion resistance of wetted parts and compatibility with main media to be sealed. These seals are supplied with cooling water jacket which ensures cool running of the seal.







Applications:

Corrosive Chemicals, Hydrocarbons, General & Light Chemicals Mixers & Agitators


Seal Components:

Seal Face : Carbon/ Ceramic, Carbon/ Silicon Carbide, Carbon/ Tungsten Carbide
Secondary Seal : Elastomers, TCV
Metal Parts : SS316, SS304, Hastelloy-C, Alloy-20


Seal Characteristics:

• Single Acting
• Reverse Balanced
• Outside Mounted
• Independent of Direction of Rotation
• Without Bearing
• Water Jacket Cooled


Operating Parameters:
Shaft Dia : 25 to 150 mm
Pressure : Vacuum to 8Bars(max)
Temperature : Ambient to +180° C
Velocity : Up to 320 rpm
