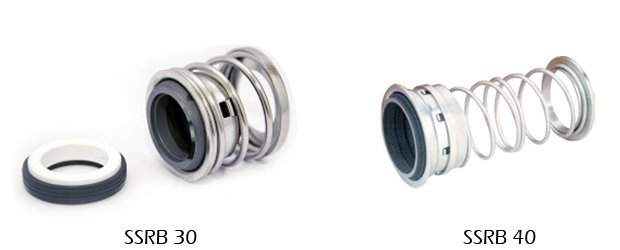

Quba’s Single Spring Rubber Bellow Seal SSRB 30 Series & SSRB 40 Series
are single coil spring rubber bellow seals used in Petrochemicals,
Food Processing, Pulp & Paper and other demanding Applications. These
seals are mainly used in compressors. Seals have self aligning feature which
compensates abnormal shaft end play and run out, which leads to improved
service life. Elastomeric bellow protects shaft and sleeve from fretting. Drive to
the seal faces is given through notches provided on retainer. Due to single coil
spring, seals do not get clogged in effluent containing particles. Seals can be
used for high speed & high pressure applications. Seals can be repaired in the
field with minimum spares minimising the downtime cost.
Seal Face :Carbon / Ceramic, Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide
Secondary Seal : Nitrile, Viton
Metal Parts: SS 316, SS 304
• Unbalanced
• Single Helical Coil Spring
• Independent of Direction of Rotation
• Torque Transmission by Drive ring
Pressure : 18 Bars(max)
Temperature : -20 to +1800 C
Velocity : Up to 20 m/sec
