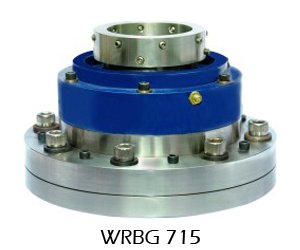

Quba’s Wet Running Seal With Bearing WRBG 715 Series is factory assembled & dynamic tested seal for steel, glasslined & SS mixers, agitators & vessels. These are used with non pressurised barrier fluid preferably clean soft water because of its good heat transfer qualities. Fluids like oil, hydrocarbon, solvents etc. Can also be used as buffer fluid by considering the corrosion resistance of wetted parts & compatibility with main media to be sealed. These seals are supplied with cooling water jacket which ensures cool running of the seal.
Corrosive, General & Light Chemicals, Food Products, Pharmaceutical Industries, Agitators, Mixers.
Seal Face : Carbon/ Ceramic,
Carbon/ Silicon Carbide,
Carbon/ Tungsten Carbide
Secondary Seal : Elastomers, TCV
Metal Parts : SS316, SS304, Hastelloy-C,
Hastelloy-B, Monel, Alloy-20
• Single Acting
• Reverse Balanced
• Outside Mounted
• Independent of Direction
of Rotation
• With Bearing
Pressure : Vacuum to 8Bars(max)
Temperature : Ambient to +180° C
Velocity : Up to 320 rpm
