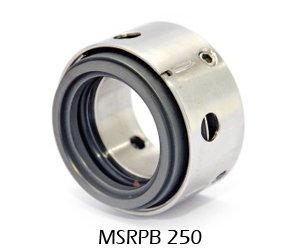

Multi Spring Reverse Pressure Balanced Seal MSRPB 250 Series is a multiple spring
externally mounted reverse pressure balanced seal with O ring as elastomer.
Various seal face materials and elastomers can be offered for wide service
application. This seal can also be used for corrosive services as the metallic
components do not come in contact with liquid to be sealed. This seal can also
be installed in double backto back arrangement as an internal seal. Even if
barrier fluid pressure goes down this seal will not allow process fluid to mix with
barrier fluid, hence it is called Reverse Pressure Balanced Seal.
Corrosive Chemicals, Hydrocarbons, General & Light Chemicals.
Seal Face :Carbon / Ceramic,
Carbon / Silicon Carbide,
Silicon Carbide / Silicon Carbide,
Tungsten Carbide/Tungsten Carbide
Secondary Seal : Elastomers, TCV
Metal Parts: SS 316, SS 304, Hastelloy-C, Monel, Alloy-20
• Reverse Balanced
• Outside Mounted
• Independent of Direction of Rotation
Pressure : 25 Bars(max)
Temperature : -45 to +160° C
Velocity : Up to 20 m/sec
